Next-Generation VS Series Shredder

Shred Anything.
Built for Anything.

The EDGE VS420 high-torque twin-shaft waste shredder delivers exceptional throughput on green waste, MSW, C&D, biomass, and end-of-life tyres — with customisable chambers, intelligent load management, and proven uptime across Australia and North America.

Download Brochure Request a Quote
310kW
Caterpillar Engine
29.2T
Operating Weight
38+
Countries Worldwide

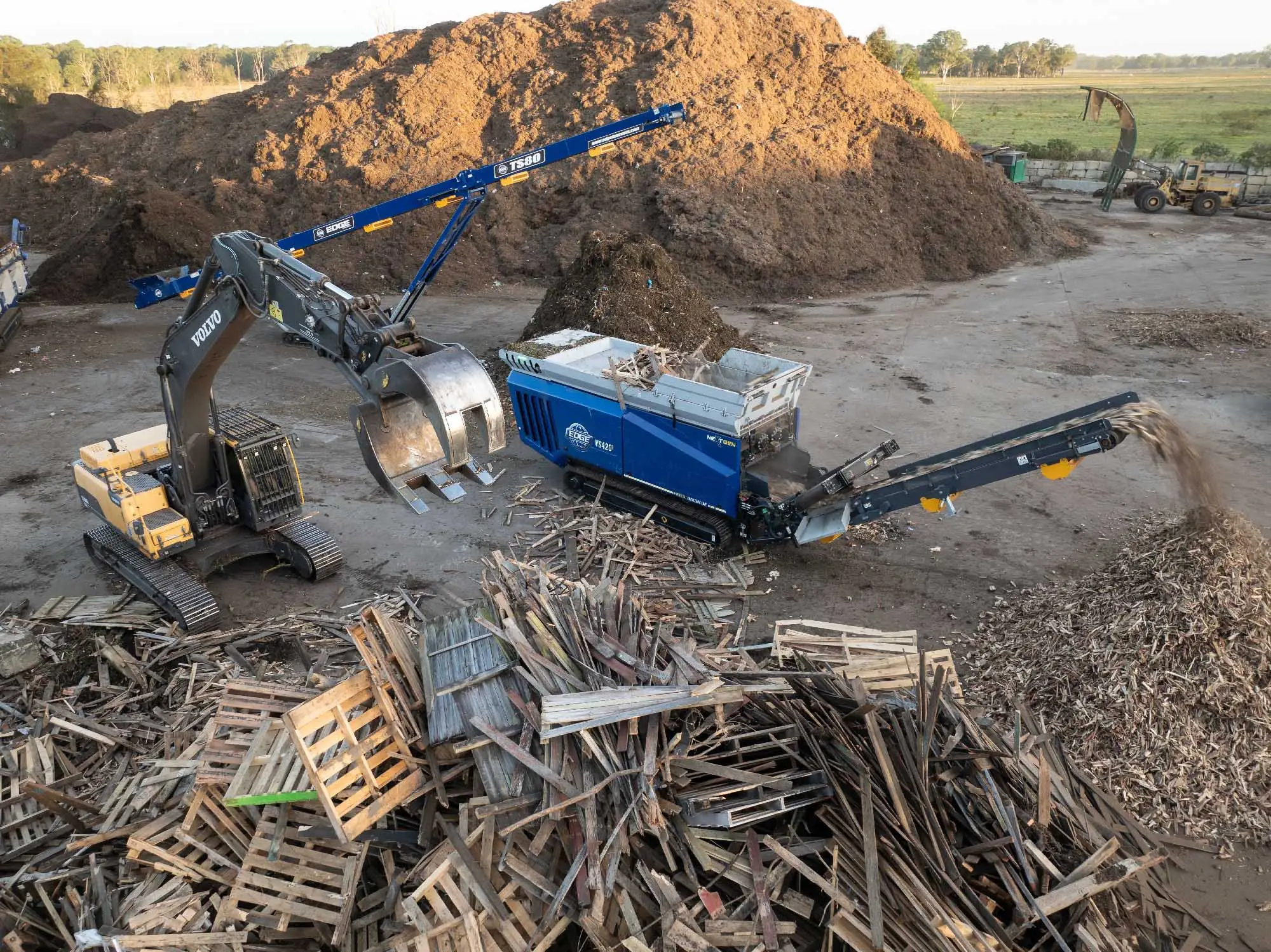

EDGE VS420 twin shaft shredder processing timber at ANL Australia
Caterpillar Tier 4F Engine ★ Operating in 38+ Countries ★ Distributor Network 50+ ★ ISO Certified Manufacturing ★ Tier 4 Final / Stage V ★

Regional Availability

Supporting operators across Australia & the United States

AU
Australia & New Zealand
FOCUS Enviro — Master Distributor

Local parts, service and application support across Sydney, Melbourne, Brisbane, Perth and Adelaide. ANL's Badgerys Creek facility is one of many VS420 sites running around the clock.

US
United States & Canada
Tier 4 Final / EPA Compliant

Caterpillar C9.3B Tier 4 Final engine meets strict EPA emissions standards. Full distributor coverage across the lower 48 with dedicated application engineers for C&D, MSW and organics operators.

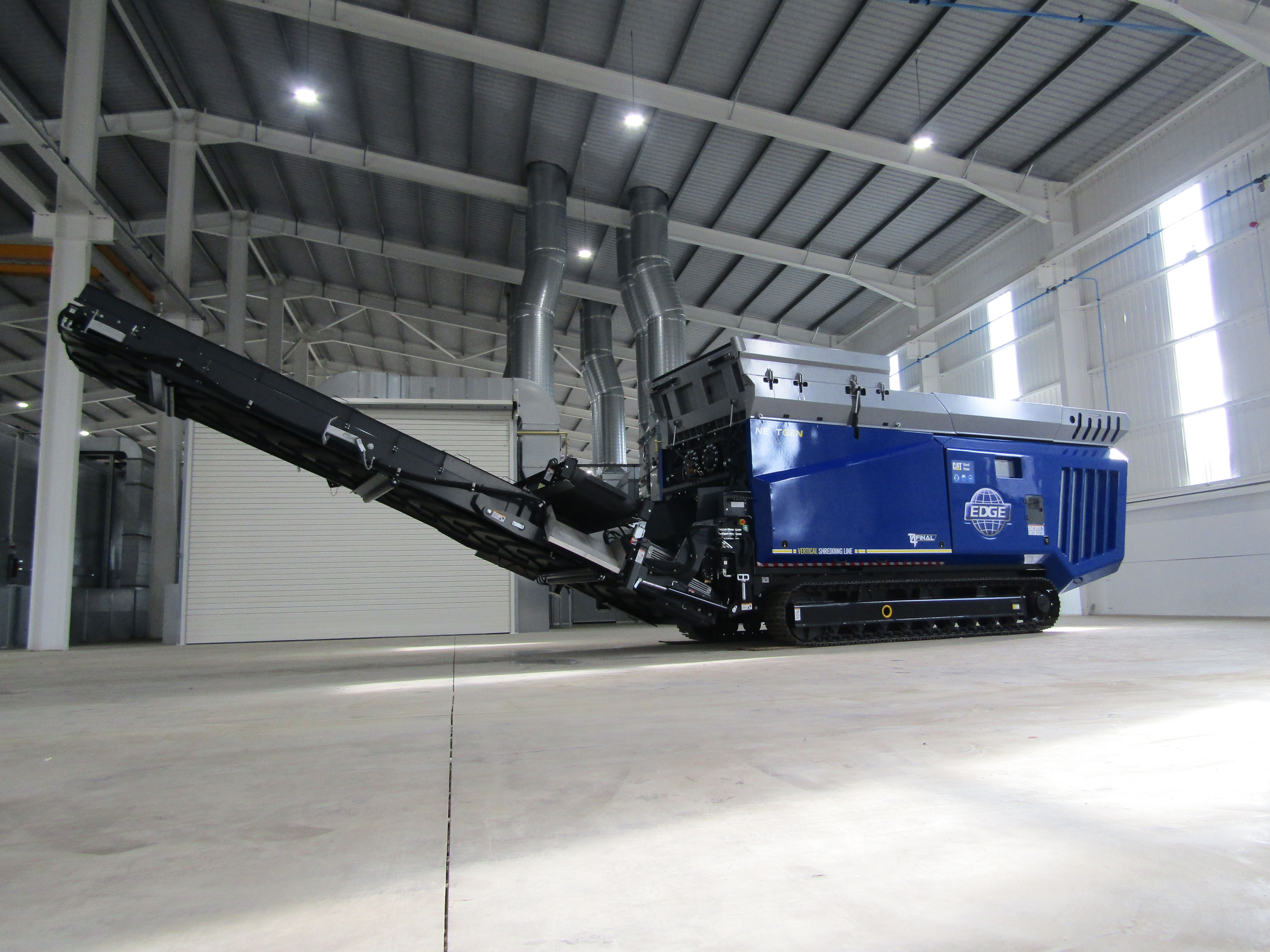

EDGE VS420 side profile

The EDGE VS420

Engineered for the toughest waste streams

At the heart of the VS420 are twin synchronised, high-torque shredder shafts that can be customised to suit your exact application and target piece size. The result: exceptional material intake, less wear, self-cleaning operation, and no material wrapping — even on the toughest contaminants.

Available on tracked, wheeled, static, or hooklift chassis — the VS420 modular design can be configured as a primary or secondary shredder and is supported by EDGE's intelligent load management system, the EOS operating platform, and a 50-strong global distributor network.

Twin-Shaft Power

Twin synchronised high-torque shafts deliver aggressive intake, less wear, and self-cleaning operation. Customisable chamber configurations for any output piece size.

Intelligent Protection

Tramp metal protection, the VS Status Alert system, and EDGE Operating System (EOS) with on-board load sensing diagnostics prevent asset damage and minimise downtime.

One-Man Operation

Full radio remote control, hydraulic hopper extensions, automatic tipping hopper cycle and eco-power saving mode. Lower fuel. Higher uptime. One operator.

Built To Perform

A shredder that
earns its place on site

  • ✓

    Caterpillar C9.3B Tier 4 Final Engine

    310kW (420HP) of proven diesel power with Stage V compliance. Improved fuel efficiency combined with eco-power saving functionality.

  • ✓

    Intelligent Self-Protecting Control System

    Latest EDGE Operating System (EOS) with on-board load sensing diagnostics. The VS Status Alert system provides instant visual feedback to the operator.

  • ✓

    Twin-Shaft Design

    Exceptional intake behaviour, less wear, self-cleaning, and prevents material wrapping — even on the toughest applications.

  • ✓

    Modular Service-Oriented Design

    Available on tracked, wheeled, static, or hooklift chassis. All major components accessible and easily removed for fast maintenance.

  • ✓

    Customisable Output

    2" to 10" basket screens for guaranteed final product piece size. Various chamber configurations for primary or secondary deployment.

  • ✓

    Complete Radio Remote Operation

    Full radio remote control allows for one-man operation. Hydraulic hopper extensions and automatic tipping hopper cycle included as standard.

Applications

› All types of wood & pallets
› Construction & Demolition
› Green waste & stumps
› MSW & household waste
› Commercial & industrial
› White goods & mattresses
› Paper & cardboard
› Wind turbine blades
Technical Specs

VS420 Specifications

Caterpillar C9.3B Tier 4 Final / Stage V

Engine Power
310 kW / 420 HP
Operating Weight
29.2 Tonne (32.1 UST)
Transport (W × L × H)
2.55m × 9.7m × 3.1m
Working (W × L × H)
2.55m × 13.4m × 4.7m
Chassis Options
Track / Wheel / Hooklift / Static
Power Options
Diesel / Electric Hybrid
Output Piece Size
2" — 10" screens
Emissions
Tier 4F / Stage V
Download Brochure Request a Quote
350,000
Tonnes / Year Processed

Australian Customer Story

"User-friendly, reliable, and a great product."

We've purchased the VS420 slow speed shredder, the EDGE TRT trommel, and TS80 stacker — all of which are user-friendly, produce a great product, and are very reliable. FOCUS Enviro has been very good to deal with, always friendly, always reliable, and always there when you need them.
JM
James Myers
Operations Manager · Australian Native Landscapes
2024
VS420 Delivered
40+ Years
ANL Operating History
3 Units
EDGE Equipment On Site

Build Your Complete Recycling Line

Recommended EDGE Equipment

Pair the VS420 with complementary shred, screen, and separation equipment — all backed by the same global distributor network.

Electric

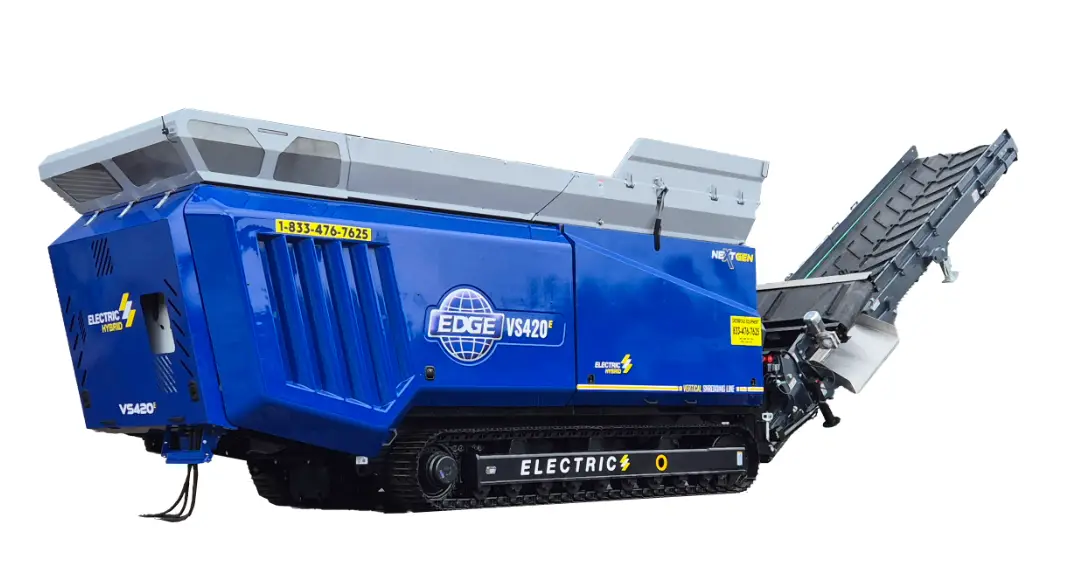

VS420E Electric Hybrid waste shredder
Shred

VS420E

Zero-emission hybrid twin-shaft shredder. Twin 132kW motors deliver identical output to diesel with reduced operating costs and indoor deployment.

Get More Info
80+ TPH

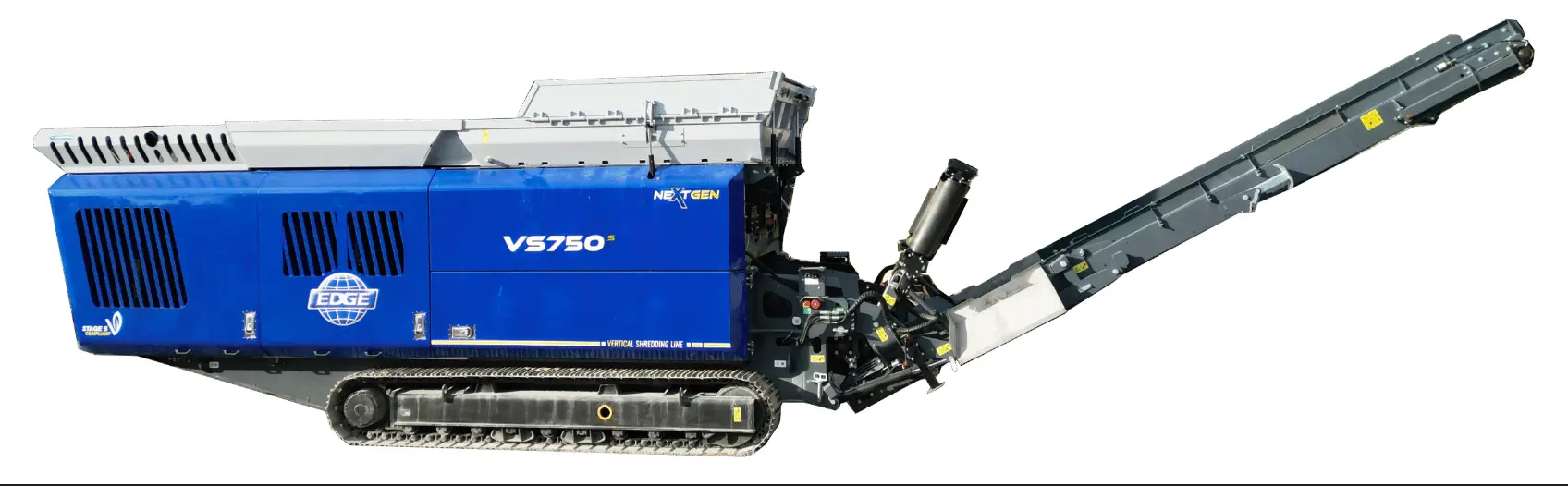

VS750s high-capacity twin shaft shredder
Shred

VS750s

Bigger, stronger primary shredder. 563kW (755HP) Caterpillar engine, 2.5m shredder shafts, 80+ tonnes per hour throughput.

Get More Info
Track

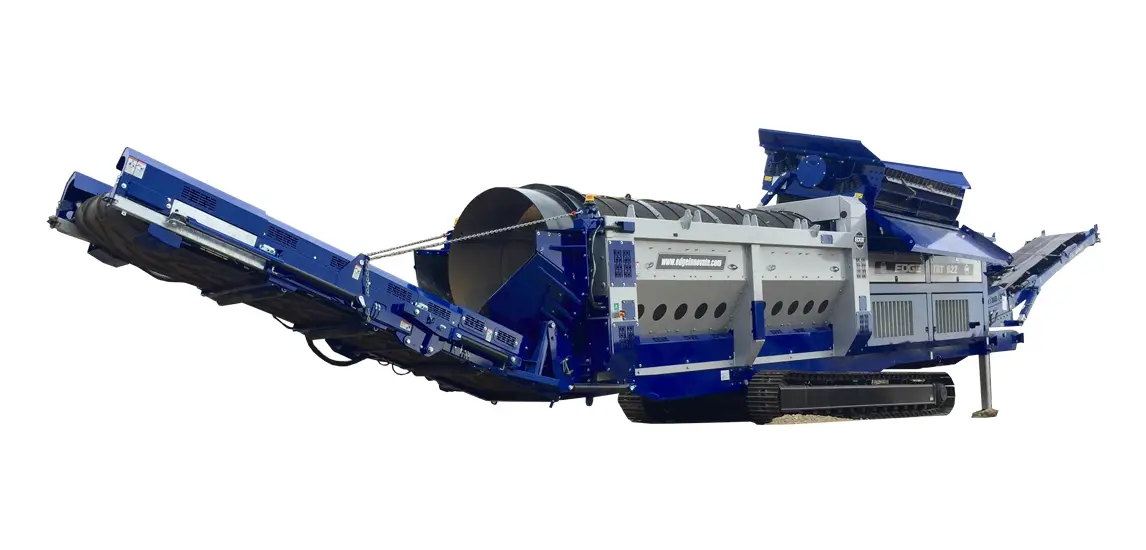

EDGE TRT622 Track Trommel with radial conveyor extended
Screen

TRT622

Track trommel with 6.9m drum, 180° radial fines conveyor, and only 12-15 L/hr fuel consumption. ANL's partner of choice in NSW.

Get More Info
Modular

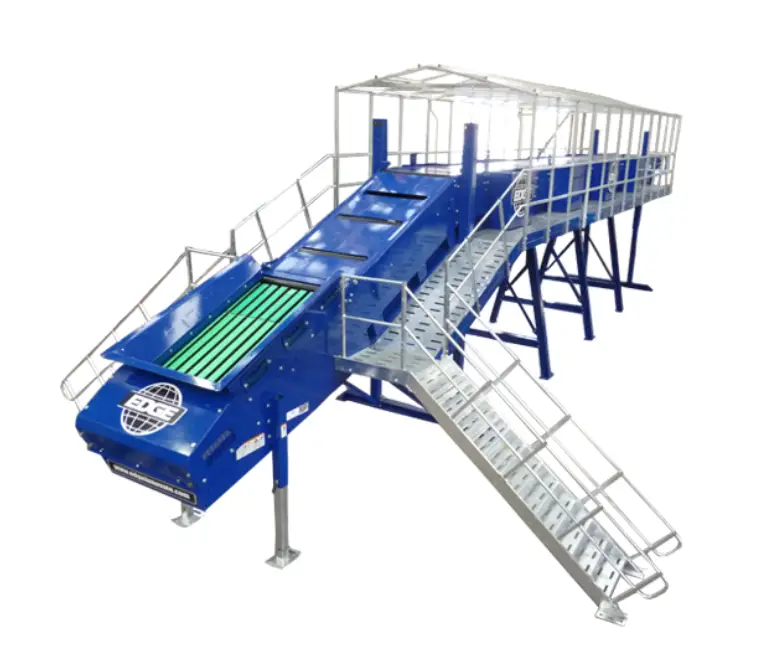

EDGE MPS48 Modular Mobile Picking Station
Separate

MPS48

Modular mobile picking station. 1200mm wide conveyor, variable belt speed, add or remove bays as your operation scales.

Get More Info

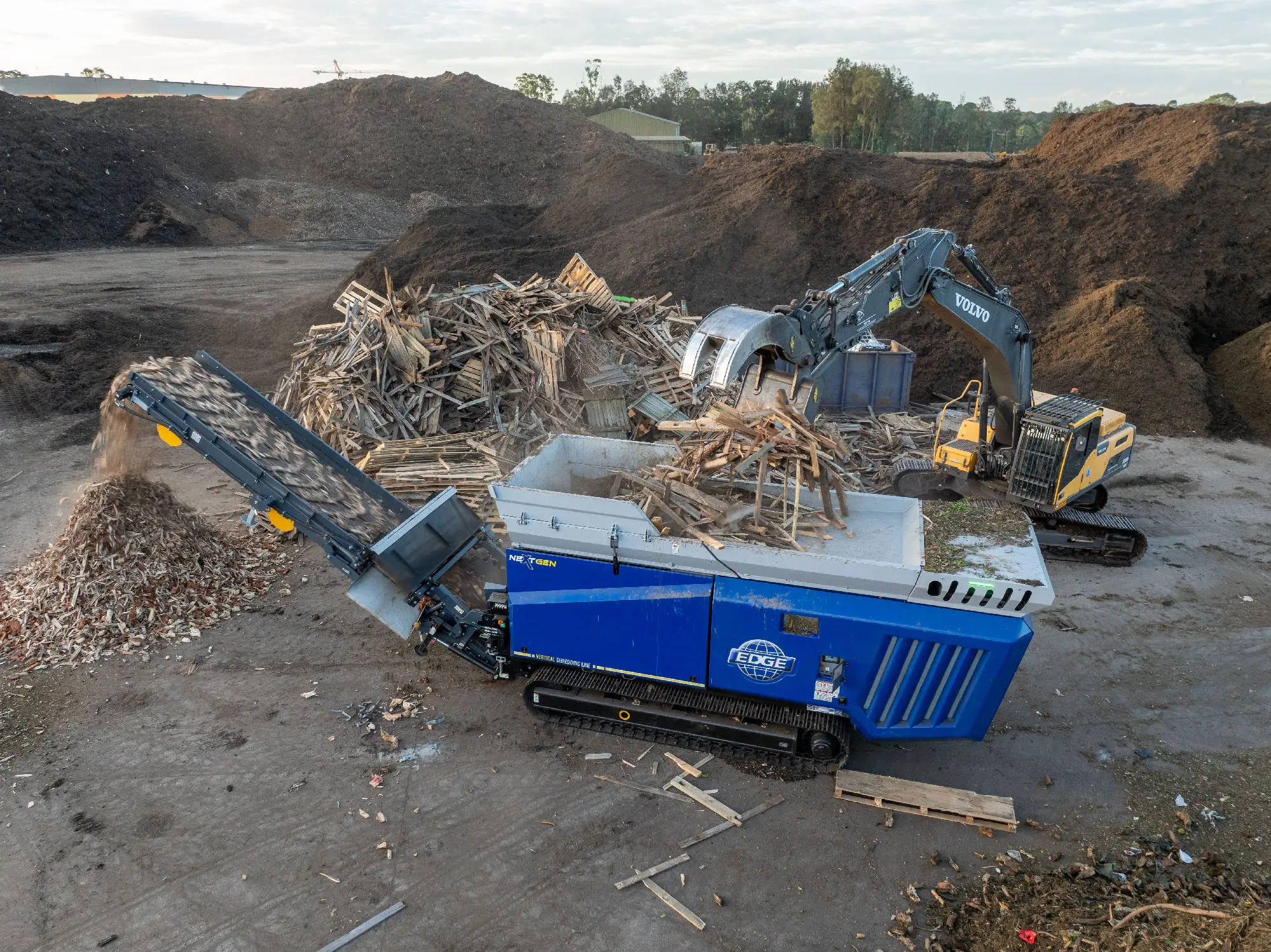

EDGE VS420 slow speed shredder processing timber with Volvo excavator on site

Proven In The Field

Built for the site conditions you actually face.

From the rugged yards of New South Wales to municipal sites across the United States — the VS420 runs day in, day out, on the materials that slow other machines down.

Talk to an EDGE Specialist

Take The Next Step

Get the spec sheet or talk to us direct

Choose how you'd like to engage. Either way, a regional EDGE specialist will be in touch within one business day.

By submitting, you agree to receive product information from EDGE Innovate. We may pass your enquiry to your regional distributor for fastest response.

No obligation. A regional specialist in AU or US will respond within 1 business day with configuration and pricing options.

Common Questions

What operators ask before buying

Real questions from real procurement and operations teams across the recycling industry.

Is the VS420 compliant with US EPA Tier 4 Final emissions?
Yes. The VS420 is powered by a Caterpillar C9.3B Tier 4 Final / Stage V 310kW engine, fully compliant with current EPA standards for off-road diesel engines in the United States and equivalent Stage V requirements in Europe and Australia.
Can I deploy the VS420 indoors or near noise-sensitive sites?
The diesel-hydraulic VS420 is designed for outdoor operation. If you need indoor or low-noise operation, the EDGE VS420E Hybrid Electric produces zero engine emissions and zero engine noise when shredding — ideal for built-up areas, transfer stations, and indoor recycling facilities. Plug-and-shred connection takes minutes.
What does the 50-strong distributor network mean for parts and service?
You get local parts, local service, and local application engineering — not a six-week wait for a container from overseas. EDGE partners with FOCUS Enviro across Australia and a dedicated US distributor network, giving you same-time-zone support and on-the-ground technical expertise.
How much throughput can I expect on green waste and timber?
Throughput depends on material, moisture, and target piece size. For typical green waste and timber operations (like ANL's Badgerys Creek facility processing 350,000 tonnes annually), the VS420 consistently delivers high production rates with low fuel consumption. Contact us with your material profile and we'll model expected throughput.
Can the VS420 be configured as a primary and secondary shredder?
Yes. With multiple chamber configurations and 2" to 10" basket screens available, the VS420 can be tuned for either rapid volume reduction (primary) or precise piece sizing (secondary). The modular design also supports tracked, wheeled, static, and hooklift chassis — so the same shredder platform can move with your operation.

Ready When You Are

Make the VS420 your next shredder.

Join ANL and hundreds of operators worldwide running EDGE equipment every day. Get the brochure, request a quote, or talk to a specialist about your application.

Download VS420 Brochure Request a Quote
